Unimat 1 Basic for Primary School (4 in 1)

Mini Machine Tools

160100EDUB

TheCoolTool

Product Description

Model Making with Ease

UNIMAT 1 BASIC was developed specifically for working with wood.

The user will be delighted with the UNIMAT 1 BASIC, as their creativity allows them to form turned work pieces and jigsaw models, entirely by hand. Children and beginners can easily make their first steps in woodworking.

Included in the kit are the components for a jigsaw, variations of woodturning machines, a handheld, and stationary sander and a handheld drilling machine.

The only child-friendly jigsaw in the world. The short strokes allow for precise cutting, but the blade can only vibrate and does not injure the skin.

A perfect tool for schools and workshops.

Visit the official site for details



All the machines of the UNIMAT 1 BASIC  are child-friendly. Due to the short strokes of the jigsaw blade, the fingers of a young carpenter cannot be injured.

At the same time, the accurate and precise cutting of the saw delights professionals

The included UNIMAT 1 manual, the DVD and the construction plan book provide all the necessary instructions and suggestions.

Handheld Drill
手鑽

For drill and milling bits (1 to 6 mm). Perfect to reach those hidden places that
need drilling/ engraving.

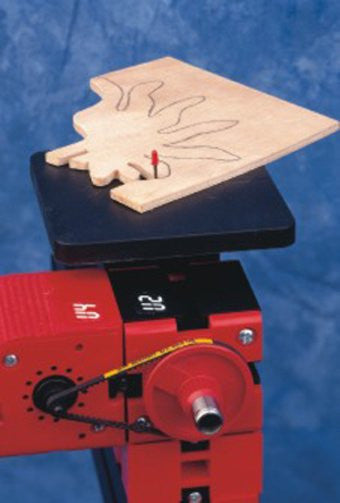

Jigsaw
線鋸

The powerful jigsaw can be used with plywood, solid wood (up to 7 mm), balsa wood (20 mm), plastics and thin metal sheets. No annoying opening and clamping of the jigsaw blade when cutting windows and notches

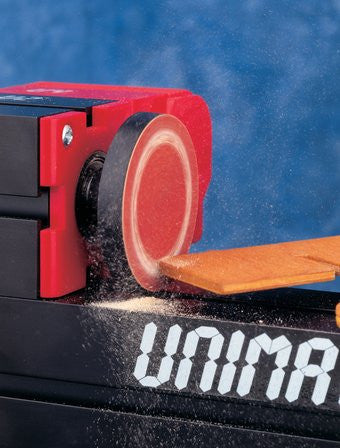

Sanding Machine
磨床

The stationary rotating sanding disc provides the final touch to your work pieces and can sharpen your tools: scissors to carving knives, chisels, gouges, etc. It can also be used as a hand-sander for hard-to-reach places.

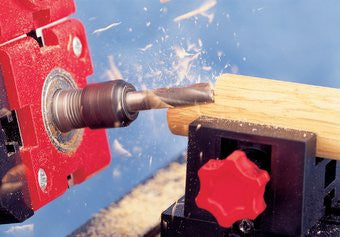

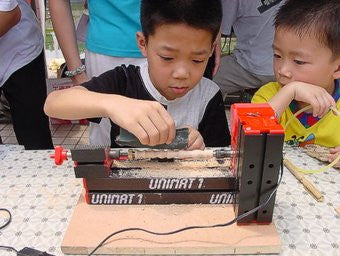

Woodturning Machine
木車床

The smallest lathe in the world creates elaborate pieces of turned wood. The small 12 V power package achieves an outstanding result with a distance between centers of 135 mm (up to 324 mm extendable) and up to 50 mm diameter, while still being childproof.

Chandeliers, scale masts, gun barrels, doll house furniture ... all easily done.

Woodturning Machine Variations

Variation Small Woodturning Machine:


Tiny sticks of wood or soft metal up to a diameter of 6mm can be clamped with collets allowing for precise, miniature workings.

Woodturning Machine Variations

Variation Faceplate Turning:


The work piece is clamped on only one side using the faceplate. You can now hollow out the wood using the turning gouge, e. g. for an eggcup.



Motor 20.000 rpm, 12 VDC
Headstock M12x1, 8 mm hole through spindle
Reduction 6:1 (3,333 rpm)
Tailstock M12x1, 15 mm sleeve travel
Adaptor 110-240V/50-60Hz,12V DC, 2A



Unimat 1 BASIC accessories

Download the assembly and operating manual Unimat1 Basic

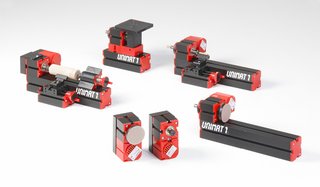

Includes all parts to build one out of these machines:

• woodturning lathe • jig saw • sanding machine • handdrill or -sander

Incl. safety glasses, rotating center, add. intermediate piece, safety adaptor and assembly video

plus the following more heavy duty usage:

  • longitudinal slide with add. connection piece
  • metal tool rest, safety glasses,
  • 10 saw blades,
  • wooden base-board with slide stops
  • 2 micro clamps

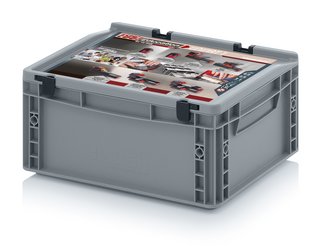

  • plastic casing (not paper box as the retail version)



HK$ 2,990.00

160100EDUB

Education version
