Unimat 1 Classic (6 in 1)

Mini Machine Tools



Product Description

The lab for technical crafting and introduction to metal works

For the model-making newcomer who wishes to turn and mill as well as for technical workshops in lower secondary level, the UNIMAT1 CLASSIC is ideal.

Visit the official site for details


All the machines of the UNIMAT 1  are child-friendly. Due to the short strokes of the jigsaw blade, the fingers of a young carpenter cannot be injured.


 The included UNIMAT 1 manual, the DVD and the construction plan book provide all the necessary instructions and suggestions.

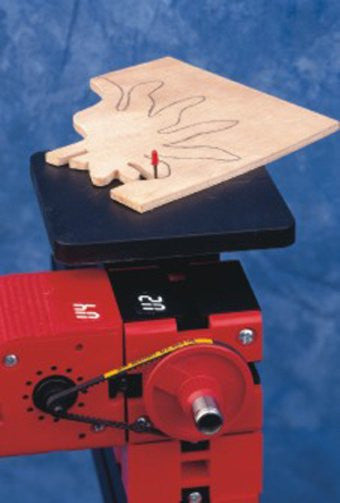

The powerful jigsaw can be used with plywood, solid wood (up to 7 mm), balsa wood (20 mm), plastics and thin metal sheets. No annoying opening and clamping of the jigsaw blade when cutting windows and notches

Woodturning Machine

The smallest lathe in the world creates elaborate pieces of turned wood. The small 12 V power package achieves an outstanding result with a distance between centers of 135 mm (up to 324 mm extendable) and up to 50 mm diameter, while still being childproof.

Chandeliers, scale masts, gun barrels, doll house furniture ... all easily done.

Sanding Machine

The stationary rotating sanding disc provides the final touch to your work pieces and can sharpen your tools: scissors to carving knives, chisels, gouges, etc. It can also be used as a hand-sander for hard-to-reach places.

Handheld Drill

For drill and milling bits (1 to 6 mm). Perfect to reach those hidden places that
need drilling/ engraving.

Metal Turning Machine

Turn soft metal just like a toolmaker. Longitudinal and cross slide with scaled hand-wheels allow precise working. Designed like a professional lathe, UNIMAT 1 offers the possibility of manufacturing axles, rims, cannons, and other model-making objects of non-ferrous metals all by yourself.

Distance between centers 135 mm (optionally expandable)
Swing over bed 25 mm.

Horizontal Mill

For architecture models, key and slot joints etc. Collets from 1 to 6 mm clamping range promote a true run for the milling. The tilting slides allow milling at different angles.

Drill Press

Precise drilling at any angle. The machining centre offers traverse paths on the X-, Y- and Z-axis. Three controlled slides (turnable) for three dimensional  working. A technician‘s delight.

Machine Option Vertical Milling Machine
Equipped with the included HSS end mill, the drill press turns into the vertical  milling machine. Any standard tool up to 6 mm can be used!

Due to the wide range of available accessories, an endless array of other machine tools can be constructed.

For the UNIMAT 1 professionalist, a gear mill for building gear wheels is only the beginning. The system even allows for the possible construction of a spiral mill. The extensive information materials enable the interested user to take the first steps into the world of professional machine engineering.

Within reason, any machine you can think of may be possible.

For special machines, any single part, up to the smallest screw, is available. The UNIMAT1 CLASSIC opens new dimensions in applications and precision. In addition to the machines found in the BASIC unit, the UNIMAT1 CLASSIC will amaze you with functions seen only in larger, more expensive lathes and mills.




Motor 20.000 rpm, 12 V DC
Headstock M12x1, 8 mm hole through spindle
Reduction 6:1 (3,333 rpm)
Slides (travels)      2 cross slides (30 mm), 1 longitudinal slide (40 mm), screw pitch 1 mm
Tailstock M12x1, 15 mm sleeve travel
3-Jaw-Chuck Clamping capacity 1.8-56 mm inside, 12-65mm outside
Adaptor 110-240V/50-60Hz,12V DC, 2A


Unimat 1 accessories



Retail Version

Includes all parts to build one out of these machines:

• metal lathe • drill-press • woodturning lathe • jig saw
• sanding machine • handdrill or handsander • 3-axis milling machine (vertical or horizontal)

Incl. safety adaptor 14V/100-240V, chisel, tools, drill bit, turning steel, milling head, rotating
zing angle, stabilizing plates, drill table ...


Education Version

All the features of the carton box retail version, plus the following more heavy duty usage:

  • tool grinder
  • metal tool rest, safety glasses,
  • 10 saw blades,
  • wooden base-board with slide stops
  • 2 micro clamps
  • metal collets
  • plastic casing (not paper box as the retail version)


HK$ 5,250.00


Education version
