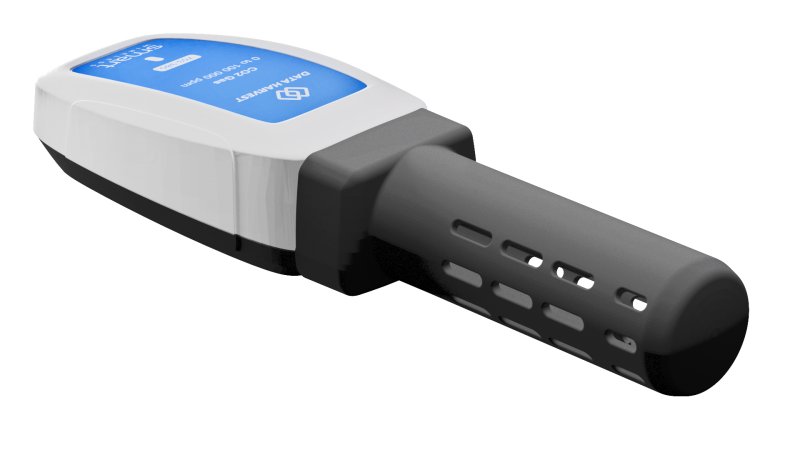

Wireless Carbon Dioxide Sensor

wireless datalogging sensors


Data Harvest

Product Description


The Wireless Smart Carbon Dioxide sensor uses a pulsed infrared light source to measure the amount of carbon dioxide. Carbon dioxide is a strong absorber of infrared, so a reduction of the infrared from source to detector will be proportional to the amount of carbon dioxide present.

The sensor is only for the measurement of carbon dioxide in dry gas environments, and is temperature compensated and can operate in high humidity environments.

The Wireless Smart Carbon Dioxide sensor also has temperature and pressure sensors built in.

This sensor can be used to investigate the amount of CO2 in the air and how it changes over time. Our BioChamber can be used to create a contained environment for study of plants and small animals. (NB for gaseous use only. Not for use in water).

Bluetooth | USB | Huge Battery Life | Independent Logging




Here are just a few example practical ideas you can achieve by using the Wireless Carbon Dioxide Sensor.

  • CO2 levels around a photosynthesising plant
  • Demonstrating the density of CO2
  • Respiration in small animals (e.g. insect larvae) at different temperatures
  • Monitoring CO2 in the local environment as a measure of ventilation or quality
  • CO2 level of expired and inspired air
  • Emissions from vehicle exhausts
  • Elevated CO2 in exercising and post exercise individual



Range -0 to 100,000
Temperature 0-50 degrees
Pressure 30-110kPa
Humidity 0-100%



Wireless Carbon Dioxide Sensor



Seriously Smart Wireless Bluetooth Sensors

Designed with new and existing customers in mind!

A new Smart Wireless range of science sensors that also function as data loggers in their own right using Bluetooth or USB connectivity. The new Bluetooth wireless sensors include a huge battery life and can be mixed & matched with existing SmartQ Sensors & Data Loggers!

Works with SmartQ

Our wireless sensors can be used in combination with other Smart Wireless Sensors or data loggers in the EasySense range, even more amazingly is that with the addition of a V-Hub sensor link you can continue to enjoy using your existing SmartQ sensors at the same time!

The Power of Smart Wireless

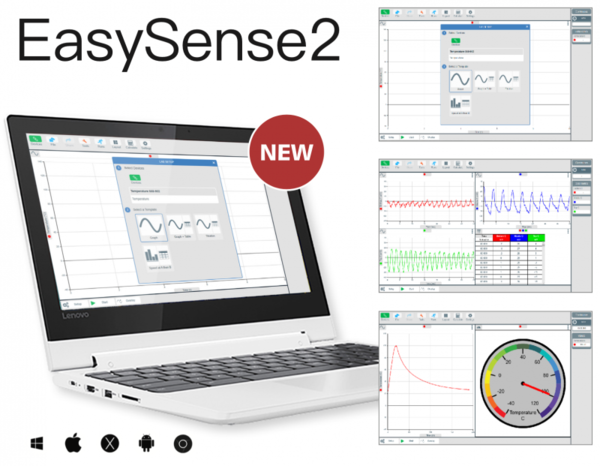

Our Smart Wireless sensors build on the design of our legendary intelligent SmartQ Sensors but adds Bluetooth wireless connectivity allowing users to connect to tablets and mobile phones using the new EasySense2 Software.

Digital Technology
Our digital sensor technology brings science to the classroom providing you with a robust, accurate and repeatable teaching experience from the start.


Auto Calibration
We have taken the hassle out of setting up your experiments with our pre-calibrated, auto identify sensor technology, every sensor is ready to use out of the box.


USB Charging
Our Smart Wireless sensors are powered by an internal battery and can be charged via a standard USB charger.


Designed for Mobile
With the included Bluetooth connectivity the new Smart Wireless Sensors can connect to Tablets, Mobile Phones, Laptops and Desktop Computers


Smart Connectivity

Not only do the Smart Wireless Sensors connect to multiple tablets and mobile devices via Bluetooth but they can also connect directly to a desktop computer and be used just like a traditional data logger whilst offering faster data transfer rates.

HK$ 3,035.00
