Servo:Lite board for the BBC micro:bit

Shield for sensor/input/output

5623

Kitronik

Product Description

This Servo:Lite board for the BBC micro:bit can form the control hub for your robotics project, control up top three servos & it has 5 x RGB ZIP LEDs on board.

(Click here for our  full selection of the BBC micro:bit +  essential accessories/add-ons)

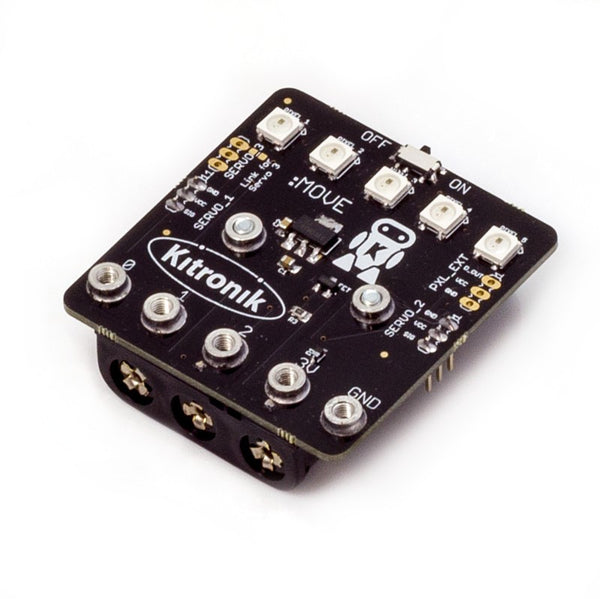

The Servo:Lite board for the BBC micro:bit is a simple board that allows you to easily connect and control low power servo motors (servo's must be capable of operating at 3.3V) using the BBC micro:bit. It is connected to the micro:bit using five bolts. Connect two servos in standard configuration and it can drive up to 3 servos if the addressable ZIP LEDs aren't needed.

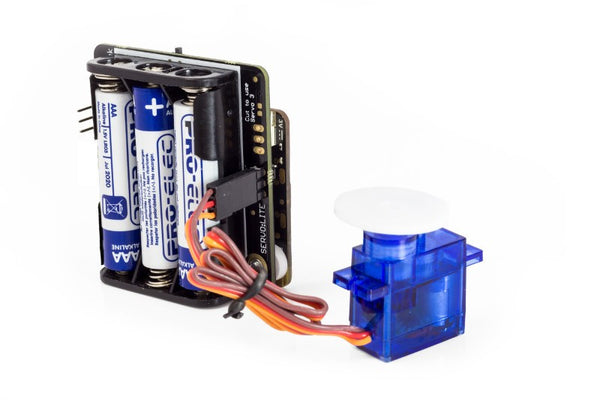

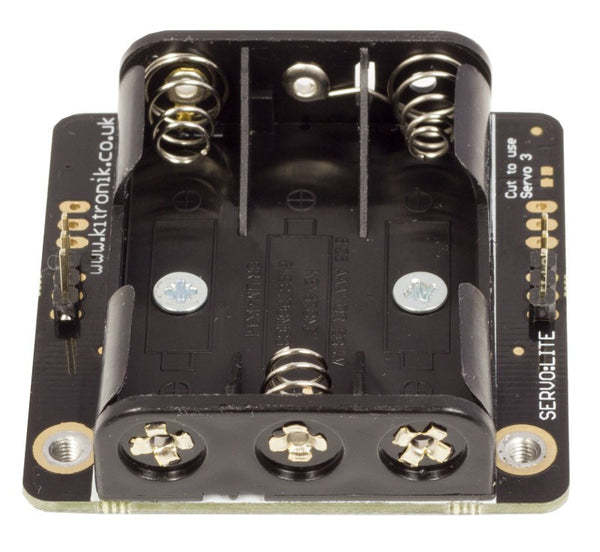

It is powered by 3 AAA batteries and also supplies power to the BBC micro:bit, the board features an On / off switch so when it's not in use the batteries won't drain.




Servo:Lite Board for BBC micro:bit (3 minutes)

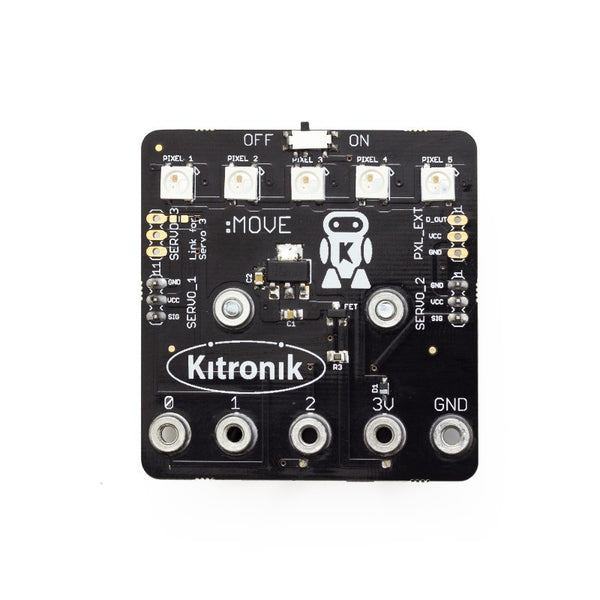

The board also features 5 x RGB individually addressable ZIP LEDs (NeoPixel compatible) and additional external ZIP LEDs can be connected to the board as required.

We've produced a range of tutorials and guides (coming soon!)  that can be found in the resources section below. We have guides detailing; how to control a third servo and how to write code for the on-board ZIP LEDs.

Features:

  • Connect two servos in standard con?guration and can drive up to 3 servos if the addressable ZIP LEDs arent needed.
  • Powered by 3 AAA batteries that also supply power to the BBC microbit (not supplied).
  • On / off switch.
  • 5 x RGB addressable ZIP LEDs (NeoPixel compatible). Additional external ZIP LEDs can be connected to the board.

Contents:

  • 1 x Servo:Lite board with battery holder pre-fitted.
  • 5 x M3x8 Counter sunk Pozi Steel screws
  • 1 x Perspex spacer.

Dimensions:

  • Length: 55mm.
  • Height: 52mm.
  • Height: 17mm.

Requires:

HK$ 97.00
