Multi Processing Station with Oven

pre-assembled training model

536627

fischertechnik

Product Description

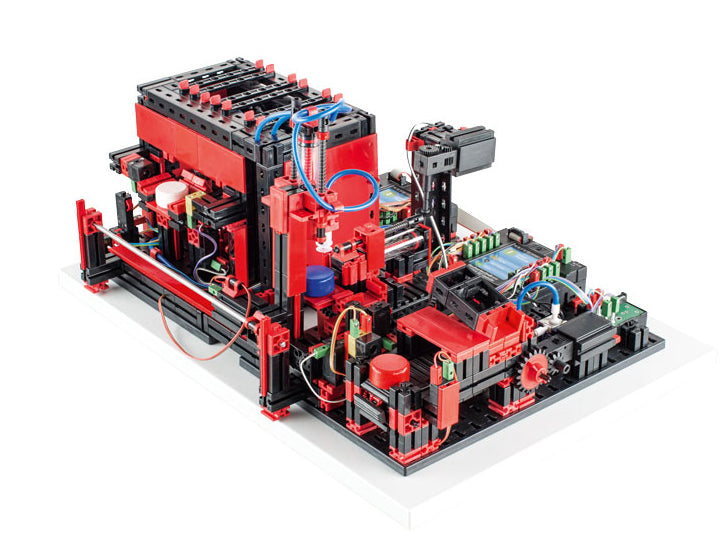

2 processing stations with pneumatic transfer for safe workpiece transfer

Furnace with pneumatic sliding door. Downstream processing station with pneumatic transfer unit including vacuum gripper, cutter with rotary table and conveyor belt.




2-minute overview



Advantages
  • Ideal training, simulation and demonstration model for training and industrial automation
  • Already completed, stable training model
  • Mounted on a solid wooden plate, model packaged in a sturdy cardboard box
  • Optionally available in the 9V standard voltage as well as in the worldwide 24V industrial standard

Specifications

  • Incl. 4x mini motors, 6x push buttons (limit switch), 2x phototransistors, 2x lens tip lamps, 4x solenoid valves, compressor.
  • Available in both 9V and 24V version
  • Model packed in a robust box.
  • Size:  470 x 310 x 220mm     Weight (g):  4300 for 9V, 3700 for 24V



  • 2x ROBOTICS TXT Controller
  • Control software ROBO Pro
  • 4x Mini motor (DC motor)
  • 6x Push button (limit switch)
  • 2x Phototransistor
  • 2x LED light barrier
  • 4x Solenoid valve
  • Compressor





Training models in 9V and 24V

Ready-to-assemble, compact training models for simulating real applications - fischertechnik is also highly regarded by engineers and trainers.

The training and demonstration models from fischertechnik are suitable for education, training and industry. Whether it's at the 9V standard voltage or in the worldwide 24V industry standard, fischertechnik supplies a wide range of simulation models tailored to the needs of your choice.

The training models from fischertechnik are the frequently preferred and proven means to plan, program, develop and test industrial controls with the corresponding software in a realistic and cost-effective manner before large investments are made. They are used worldwide in the areas of education, development, simulation and presentation.





For our training models, we provide CAD data on request - these can be further processed up to the digital twin.


The 3D animation shown here was created by Accelerated Solutions GmbH and is for demonstration purposes.

Connections of the flexible and modular fischertechnik system with industry-compatible actuators and sensors as well as controls of leading manufacturers open up almost unlimited possibilities for hardware simulation.

Complicated, technical systems are presented realistically and so perfectly simulated that they are comprehensible to everyone. Large industrial projects can be depicted in the model. This makes the functionality and feasibility clear.



The connections of the flexible and modular fischertechnik system with industrial actuators and sensors as well as the control systems of leading manufacturers open up almost unlimited possibilities for hardware simulation.

The fischertechnik simulation and training models thus open up flexible possibilities for industry, education and schools to test processes and to communicate technical basics easily.
