Quality control with AI

pre-assembled training model



Product Description

Visualize AI models and make them sustainably comprehensible, pre-built

Artificial intelligence in research, education and industry

The use of artificial intelligence in industry, education and research is becoming more and more important. The Quality Control with AI System model from fischertechnik is ideal for visualising this complex subject in a hands-on way since it creates a sustainable learning experience by linking theory and practice.



Visualizing quality assurance through AI with fischertechnik

The use of artificial intelligence in quality control brings numerous advantages, which are already being used in the automotive industry for instance. Processes can be speeded up, fault rates and costs minimised and fault evaluation standardised. The fischertechnik sorting line is supplied with workpieces in three different colours. These workpieces are marked with three processing characteristics as well as different fault patterns. The workpieces are scanned by the camera and classified with the aid of the trained AI. Depending on colour, feature and fault pattern, the workpieces are then sorted by the artificial intelligence on the basis of their quality features. The AI used is realised with machine learning in Tensorflow, where an artificial neuronal network was trained with image data. The learned AI is executed on the fischertechnik TXT 4.0 Controller. The model’s sequence control is implemented in the ROBO Pro Coding programming environment and in Python.


Generate your own AI applications

If you want to go a step further, you have the option of generating your own AI applications. The training is done in Python, for which a suitable example project is provided for explanation.

  • Ideal training, simulation and demonstration model for education and research
  • Visualization of AI systems, machine learning and neural networks
  • Networking of theory and practice for a sustainable learning result
  • Already built, stable training model. Mounted on stable wooden plate, packaging of the model in stable cardboard box

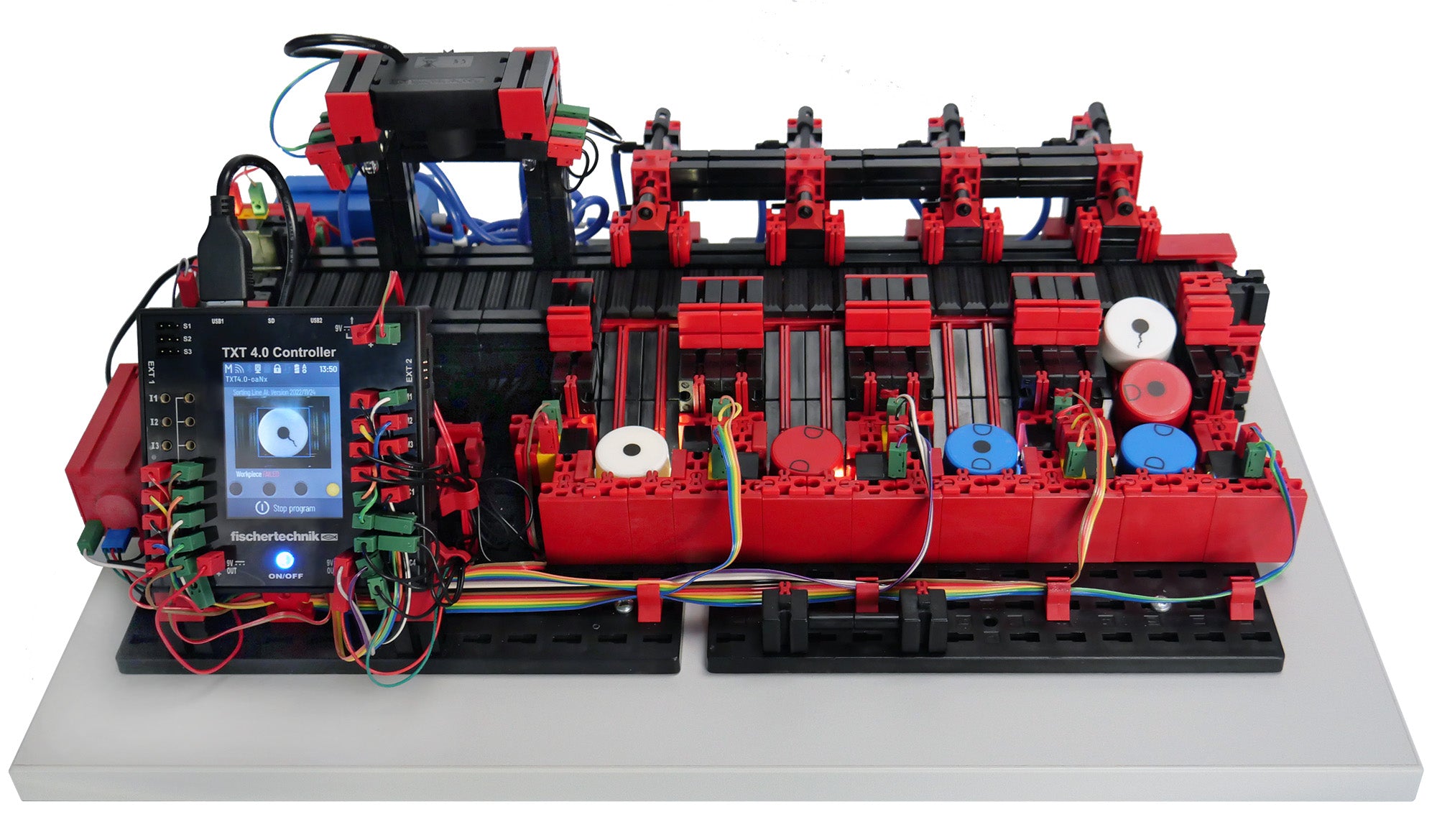

Model structure of the sorting line with AI

Sorting line for workpieces in 3 different colors (white, red, blue), with 3 different machining features (bore, gouges, bore+gouges) as well as different error patterns (bore out-of-round, bore missing, gouges missing completely or partially, cracks in the workpiece. These machining and defect features are simulated with corresponding adhesive labels on the workpieces. The workpieces are scanned by the camera and classified using the trained AI. Depending on the color, feature and defect pattern, the workpieces are then sorted into 4 different bays. The AI is implemented with Tensorflow and is run on the TXT 4.0 controller. Own AI models can also be generated. The training is done on a computer in Python. A corresponding example project is provided. The sequence control for the sorting system is implemented in the programming environment ROBO Pro Coding and in Python.

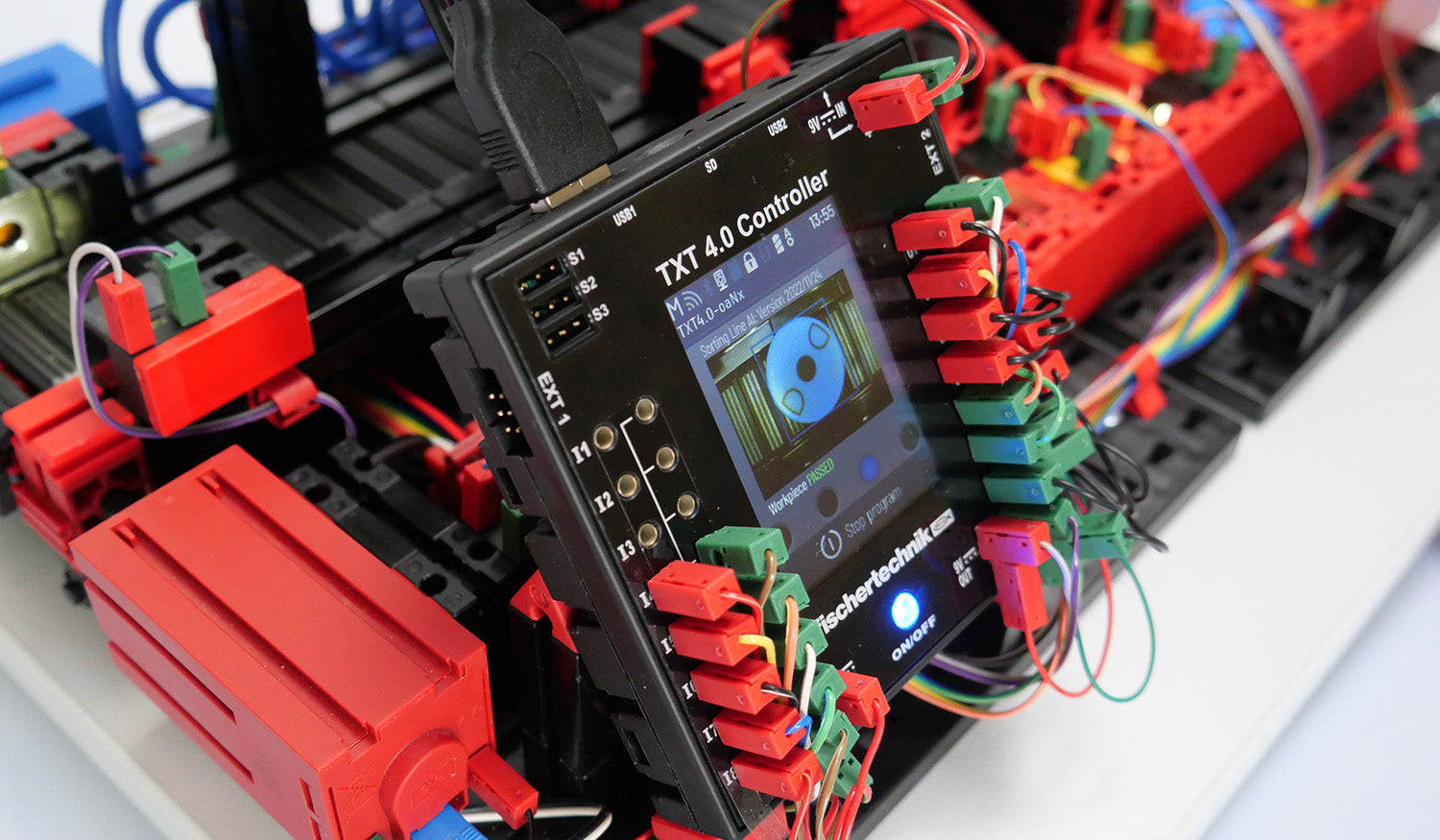

  • TXT 4.0 Controller

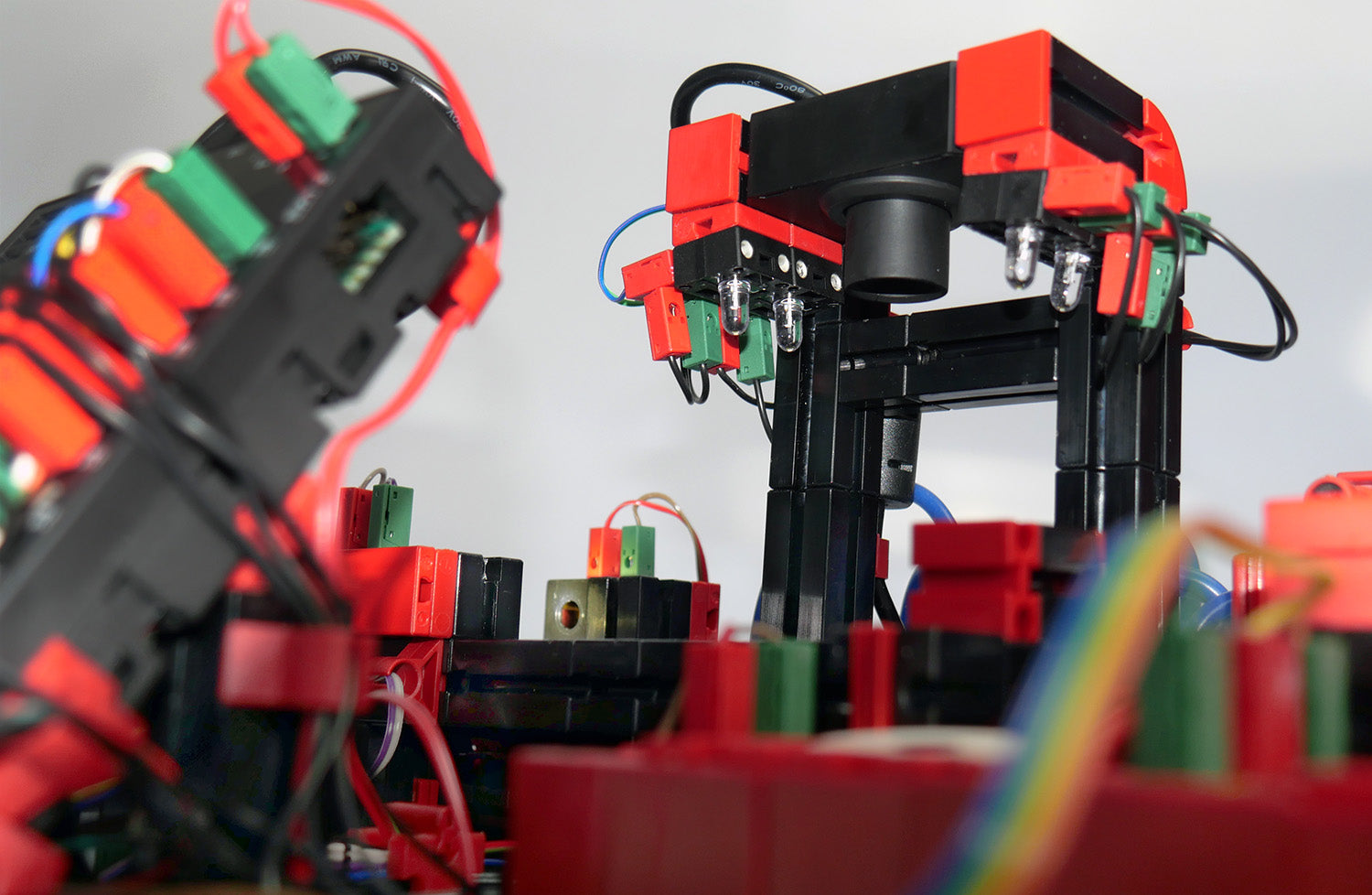

  • USB camera
  • Encoder motor
  • Compressor
  • 4x 3/2 way solenoid valves

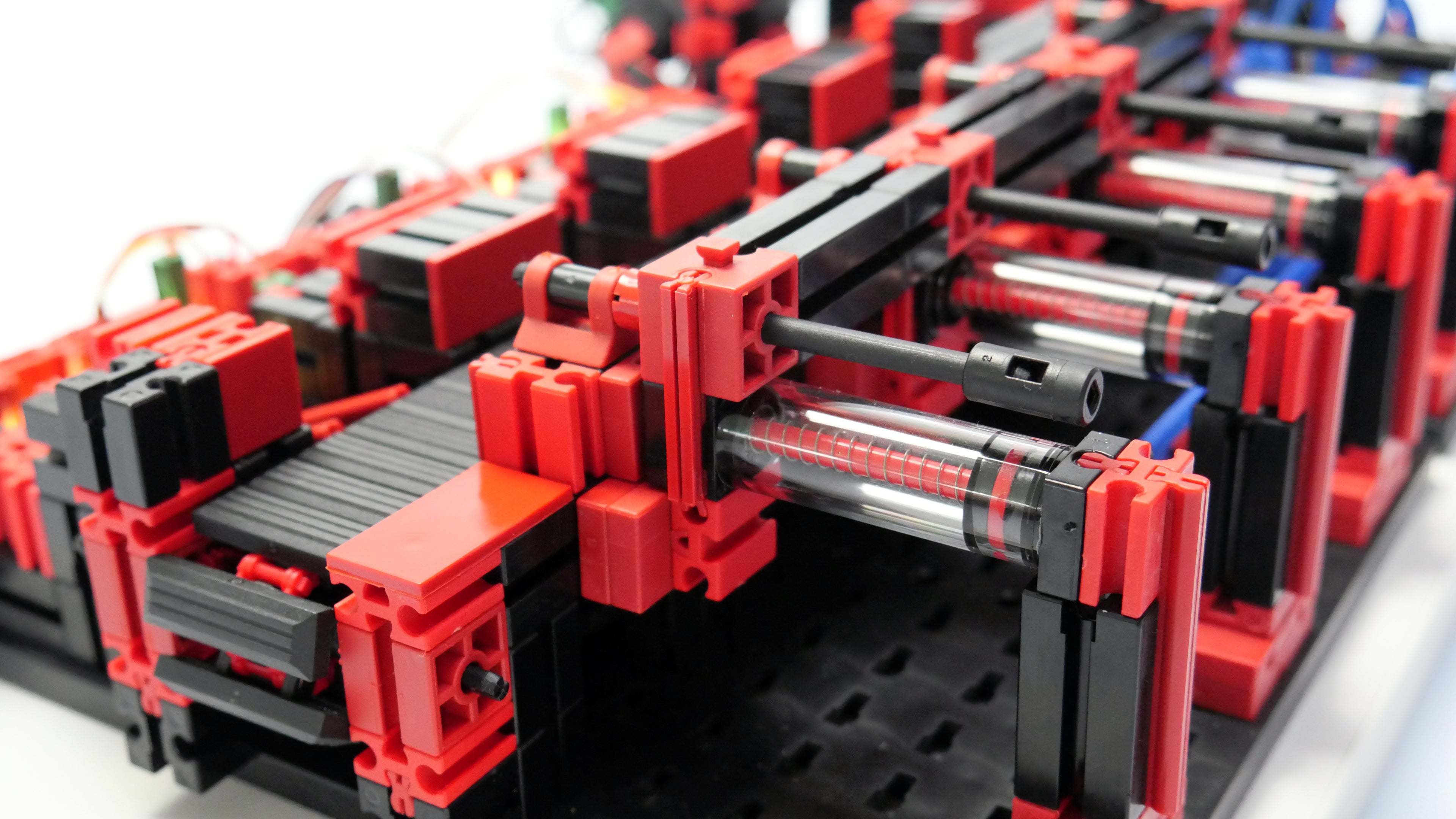

  • 4x pneumatic cylinder
  • 5x light barriers (5x phototransistor + 5x light barrier LED)
  • 4x LED for illumination of the camera field
  • 24x workpieces
  • 9V power supply
Size of packaging 50,2 x 34,2 x 30,2 cm
System prerequisites of software Windows 10, MAC OS, Linux, Android, iOS
Power supply system (Battery) power supply Art.-No.: 505287 (9V/2,5A)
EAN-Code 4048962487213



  • For the creation of a digital twin, we provide the CAD data for the model if required.
  • On GitLab we provide a sample project, with which you can develop your own AI system. ML / machine-learning - GitLab (fischertechnik-cloud.com)



Training models in 9V and 24V

Ready-to-assemble, compact training models for simulating real applications - fischertechnik is also highly regarded by engineers and trainers.

The training and demonstration models from fischertechnik are suitable for education, training and industry. Whether it's at the 9V standard voltage or in the worldwide 24V industry standard, fischertechnik supplies a wide range of simulation models tailored to the needs of your choice.

The training models from fischertechnik are the frequently preferred and proven means to plan, program, develop and test industrial controls with the corresponding software in a realistic and cost-effective manner before large investments are made. They are used worldwide in the areas of education, development, simulation and presentation.



For our training models, we provide CAD data on request - these can be further processed up to the digital twin.

The 3D animation shown here was created by Accelerated Solutions GmbH and is for demonstration purposes.

Connections of the flexible and modular fischertechnik system with industry-compatible actuators and sensors as well as controls of leading manufacturers open up almost unlimited possibilities for hardware simulation.

Complicated, technical systems are presented realistically and so perfectly simulated that they are comprehensible to everyone. Large industrial projects can be depicted in the model. This makes the functionality and feasibility clear.


The connections of the flexible and modular fischertechnik system with industrial actuators and sensors as well as the control systems of leading manufacturers open up almost unlimited possibilities for hardware simulation.

The fischertechnik simulation and training models thus open up flexible possibilities for industry, education and schools to test processes and to communicate technical basics easily.
