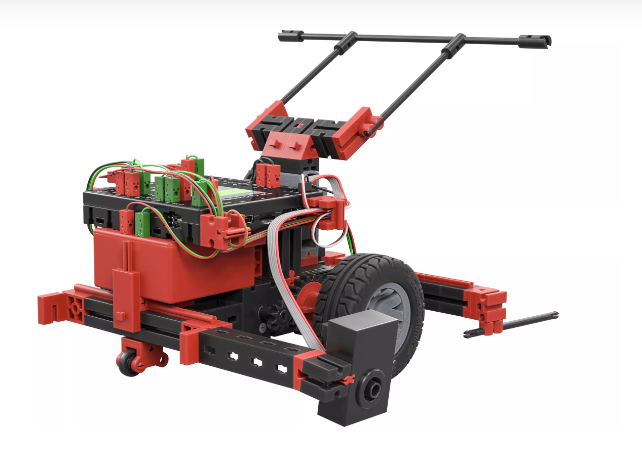

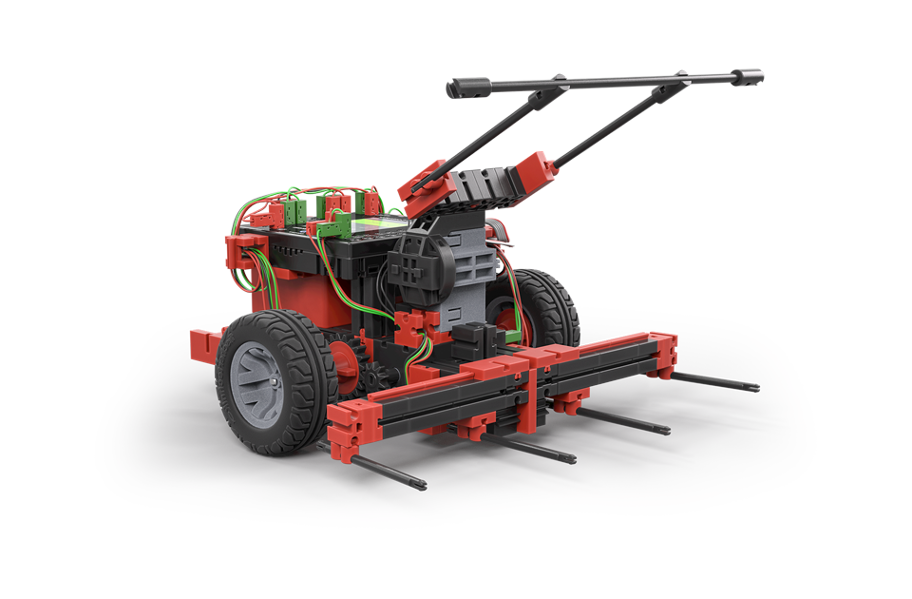

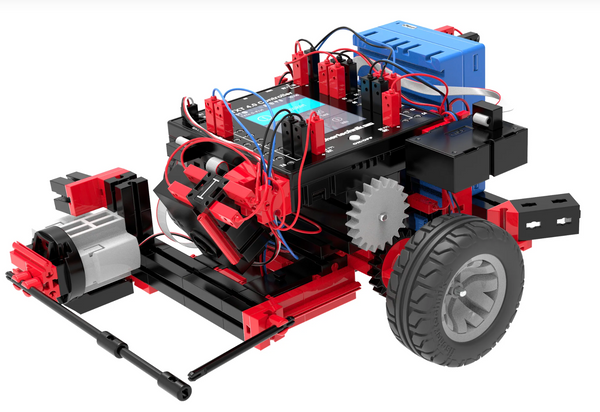

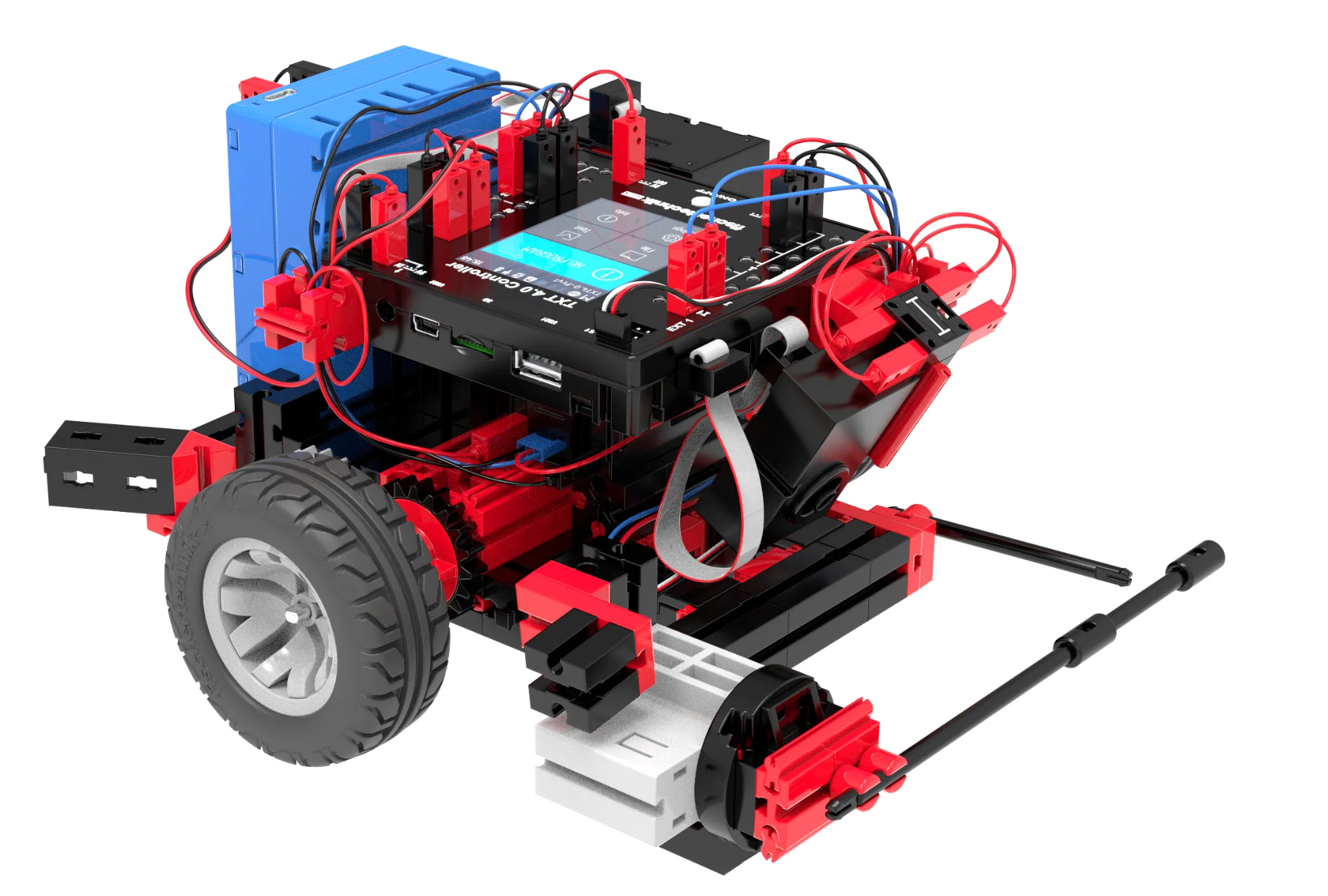

STEM Coding RoboMission

Developed for speed, precision and high performance

• Specially developed for the RoboMission category of the World Robot Olympiad
• With intelligent sensors such as several color sensors, the robot recognizes colors and lines precisely and navigates optimally, controlled by the powerful TXT 4.0 controller, which enables almost unlimited project ideas
• Block or text-based programming in the ROBO Pro Coding App (available for free download for iOS, Android, Windows, macOS and Linux)
• Helpful tutorials for an easy introduction to STEM programming from RoboMission and the ROBO Pro Coding App directly on the fischertechnik website

With the new STEM Coding RoboMission Set, you are ready to enter the WRO categories RoboMission and Starter with fischertechnik! This robotics set includes everything you need for exciting competitions and challenging tasks – all while building basic STEM skills.

Equipped with powerful encoder motors for robust drive and precise positioning, durable steel axles, and adjustable gear stages, you can fine-tune your robot for any requirement – whether it’s speed or precision. The servo motor lets you precisely target and move objects, making it ideal for advanced obstacle courses!
The robot’s intelligent color sensors and specialized RGBW sensor allow for precise navigation, all controlled by the high-performance TXT 4.0 controller. Programming through the Robo Pro Coding app is both accessible and flexible, with an intuitive Blockly interface for beginners and Python programming for advanced users. Fine-tuning with C/C++ lets you optimize down to the last millisecond for ultimate performance.

To make getting started easy and engaging, tutorial videos cover the controller, app, and additional technical components, making the STEM Coding RoboMission experience seamless and fun. With this set, you’re not just learning to build and program robots – you’re developing real problem-solving skills and preparing for future challenges. Who knows? This might just be the start of your next big success story in robotics!

TXT 4.0 Controller - Controls your robot

• 8 Universal inputs
• 4 Counting inputs
• 4 Motor outputs, alternatively 8 individual outputs
• 3 Servo Outputs
• Touch Display
• 2 6-pin sockets for connecting additional 3.3V I²C sensors
• Programming can be done both graphically and with Python using Robo Pro Coding software

Encoder Motor – Power for robust drive and precise positioning

• Powerful geared motor with a built-in magnetic encoder
• Particularly suitable for robotics competitions
• enables precise and fast movement over distances

Steel Axles - Durable, Slip-Resistant, and Optimized for Powerful Torque Transfer

• Robust and durable to withstand high levels of stress and wear
• Slip Prevention – Special surface design on the axle minimizes slipping
• Torque Transfer – Ensures secure, positive torque transfer to the wheels

RGBW sensor - Color sensor with integrated light source

• Versatile I2C color sensor for robotics competitions
• RGBW (red, green, blue, white) values with adjustable integration time
• PWM adjustable LED source
• Multiple sensors can be operated simultaneously on one controller

Digital Servo – Reliable Control for Secure Obstacle Management

• Durable metal gearing for enhanced strength
• Adjustable range of +/- 90° for precise positioning

Color Sensors – Versatile Analog Sensing for Adaptive Navigation

• Provides reliable analog values for line detection
• Two color sensors can be combined to create an analog line sensor
• Flexible mounting options for adjustable width

Battery and Charger – Replenishes battery power

• 8.4V, 1800mAh NiMH battery pack
• Short circuit protection
• incl. charger

Part list
