Unimat ML MetalLine Technic (8 in 1)

Mini Machine Tools



Product Description

The engineering lab for manufacturing precise work pieces

Including comprehensive training books and spares

Introduction to turning, milling, sawing, drilling, sanding and material, safety; project folder, etc. on over 120 pages didactic documentation

Slides, tailstock and intermediate pieces are composed of metal, manufactured and treated on cutting-edge CNC machines for perfect alignment. This guarantees a high level of precision despite the modularity of all machines.

See official web site for more details



The cool tool Education - Technical Set from The Cool Tool on Vimeo.

The UNIMAT MetalLine excels in model making, technical education, as well as in industrial use with features like:

  •  enhanced stability and precision of the entire system
  • modular structure and easy handling
  • lowest tolerances due to precisely fitting bearing seats
  • true-running accuracy through dust protected industrial ball bearings
  • re-adjustable backlash and adjustable dovetail guides
  • flat milled, grinded and matched components
  • increased wall thickness of the profiles (torsion resistant and stable)
  • metal zero-adjustable hand wheels (0.05mm scale)

    The UNIMAT MetalLine allows for the building of the following machine variations:

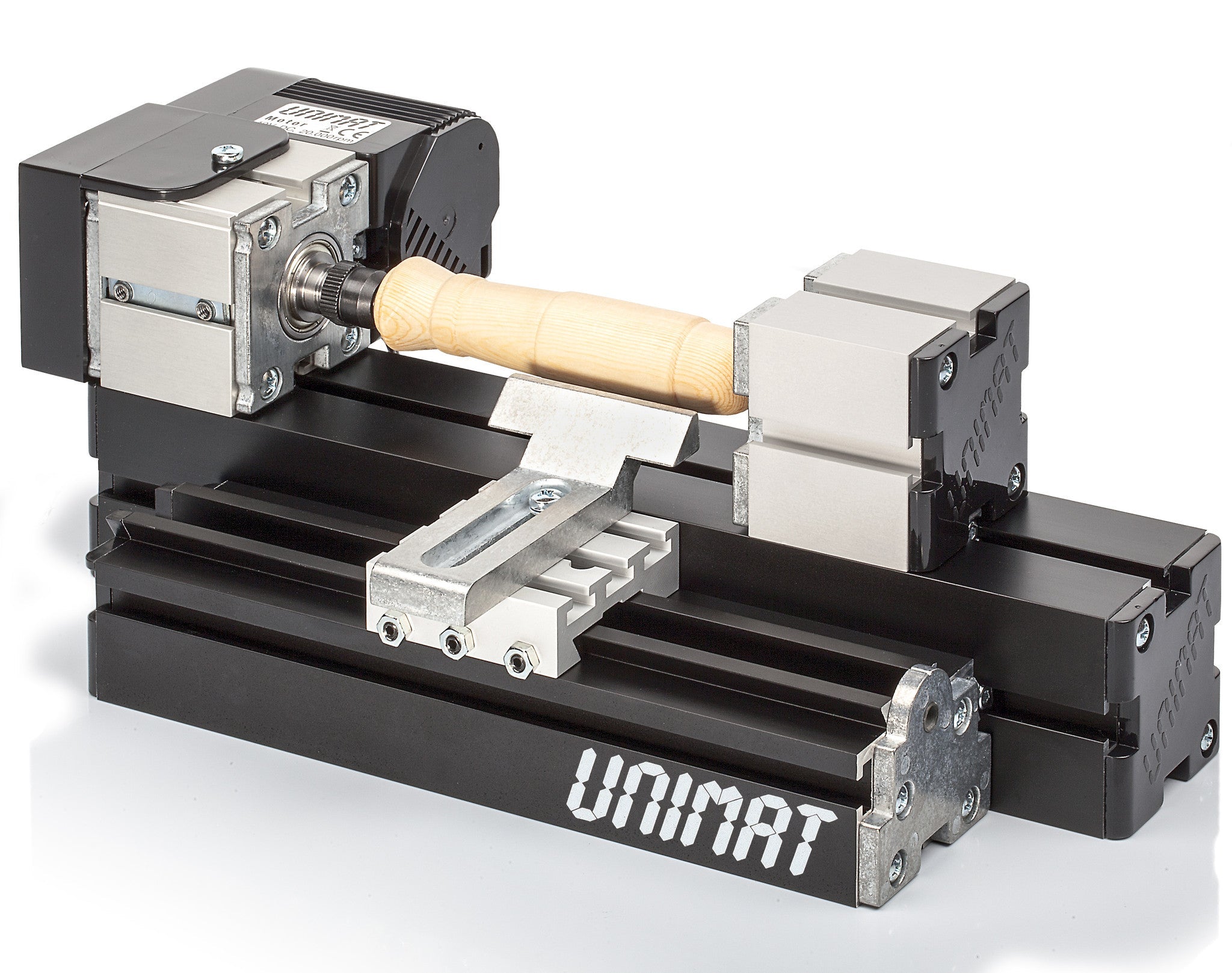

    Woodurning Machine

    Handheld Drill 手鑽/

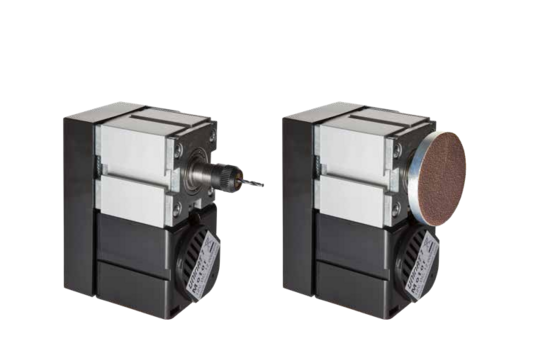

    Handheld Drill: For drilling and milling bits with shank diameters1 to 6 mm.

    Handheld Sander: With a 50 mm sanding disk also suitable for places hard to reach.

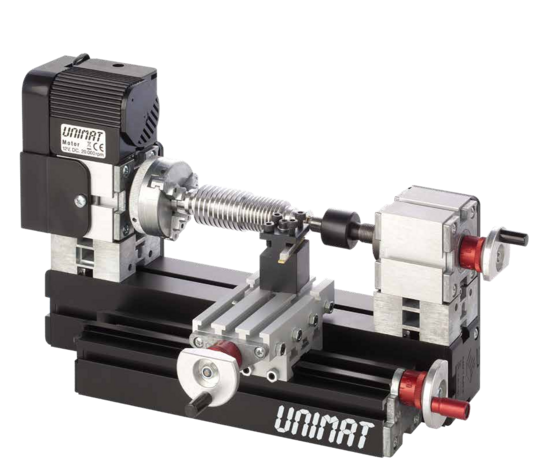

    With distance between centers of 90 mm (optionally expandable), swingover bed of 50 mm and equipped with a twoposition tool post aluminum, brass, copper and other materials can be processed precisely. With the 3-jaw chuck work pieces with ø up to 56 mm (internal) and 65 mm (external) can be clamped.
    Travel: Z-axis 145 mm, X-axis 32 mm

    Center Drill Machine

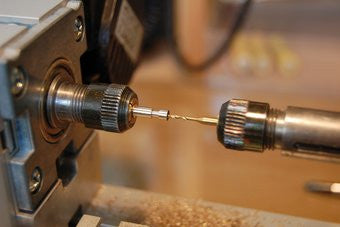

     With the precision collets, tool bits from 1 to 6 mm can be inserted into the tailstock. The tailstock sleeve allows for a precise travel of 30 mm. The hand wheel with 0.05 mm scale guarantees perfect drilling results and exact depth-control.

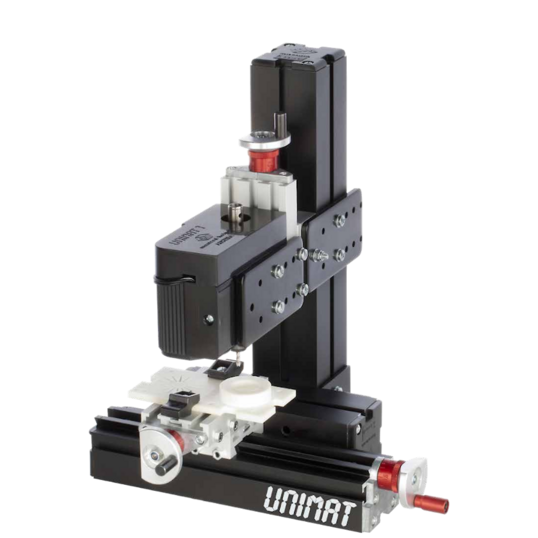

    Vertical Mill / Drill



    Two slides are used for the set-up of the cross table, the third slide is used for the Z-axis. With the hand wheels, holes can be drilled at exact positions and with  exact depth.
    Travel X-axis 145 mm, Y- and Z-axis 32 mm. Collets with a clamping range from 1 to 6 mm.

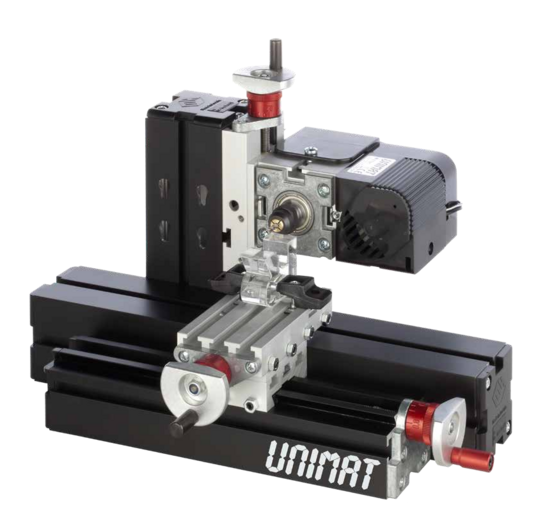

    Horizontal Mill





    Using 3 slides allows for processing work pieces 3-dimensionally. Travel: X-axis 145 mm, Y- and Z-axis 32 mm (optionally expandable).

    Collets with a clamping range from 1 to 6 mm.


    Includes all parts in full-metal to build one out of these machines:

    • metal lathe • horizontal milling machine • vertical drilling machine • woodturning lathe  • center drilling machine • jig saw  • sanding machine • handdrill or handsander (4 more machines than the ML Design and Technology machine)

    incl. safety adaptor 14V/100-240V, precision collets + live center, stabilizing plates, drill, milling head, chisel, screws, tools,...


    • steel-vice
    • tool grinder
    • safety glasses,
    • wooden base-board with slide stops and 2 micro clamps,
    • wood-working set with metal tool rest,
    • 10 saw blades




    Motor 20.000 rpm, 12 VDC
    Headstock       M12x1, 8 mm hole through spindle
    Reduction 6:1 or 2,3:1
    (3.333 or 8.696 rpm)
    Slides 2 cross slides (30 mm),
    1 longitudinal slide (145 mm travel),
    screw pitch 1 mm
    Tailstock M12x1,
    30 mm sleeve travel
    Adaptor 110-240V/50-60Hz,12V DC, 2A




    HK$ 9,500.00
