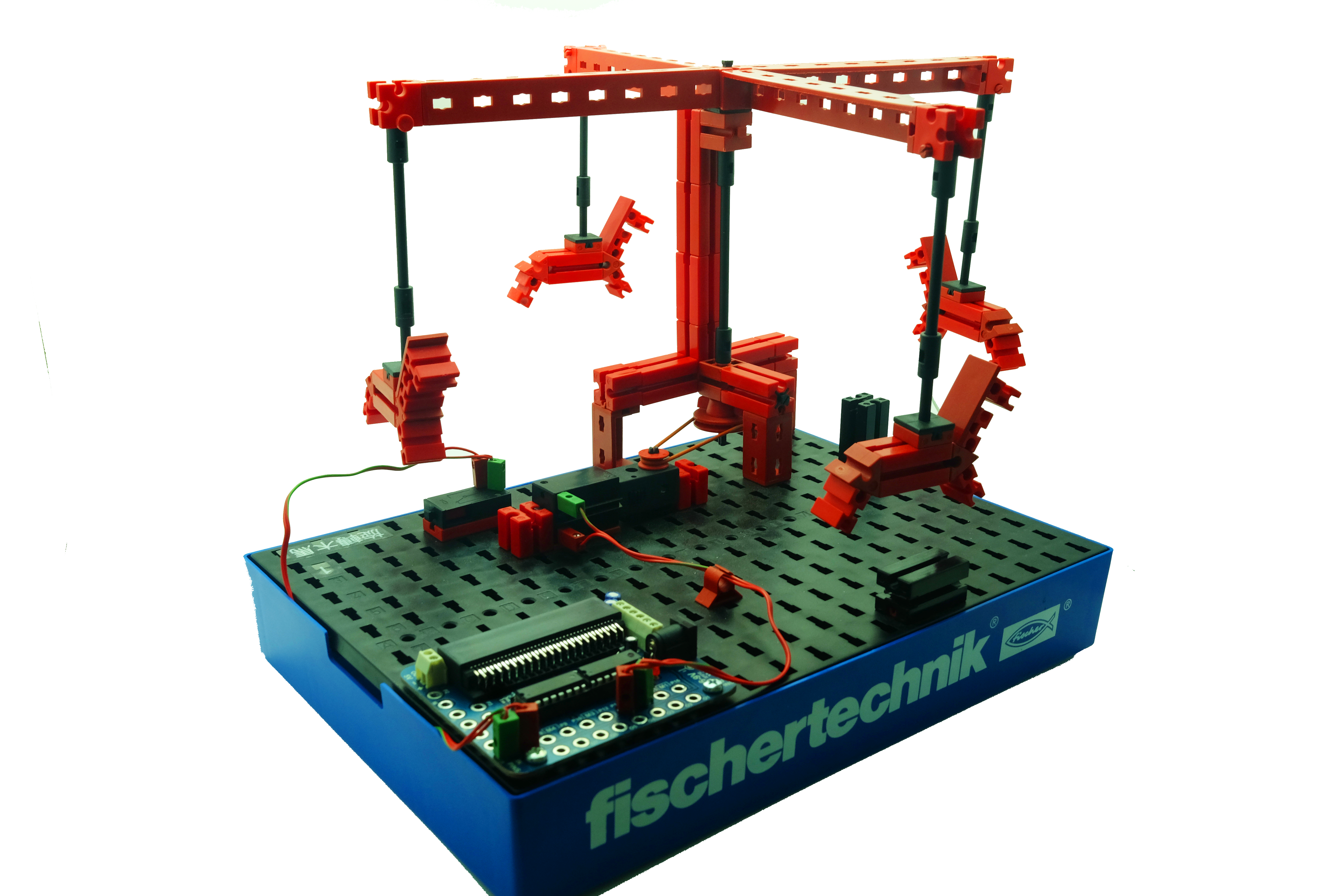

Merry-Go-Round 旋轉木馬 @STEM II 12 models

single micro:bit model from pack

fischertechnik

Product Description



You can find various models of merry-go-rounds at public festivals and amusement parks. The first motor driven merry-go-round was placed in operation on January 1, 1863 in Bolton in England.



Task 1

The merry-go-round is to be started with the push-button switch . It is to rotate for 10 seconds and then stop.

Task 2

Just going in one direction is rather boring. Change the program so that it waits a second after the motor stops and then the merry-go-round turns in the other direction for 10 seconds.



See full online guide with micro:bit coding samples for the Merry-Go-Round model , plus extension activities.

See micro:bit coding with input and output guides here.



This is a specially discounted package - delivered in a clear plastic bag.

New!  Till end December 2019 - each pack will come with the bonus fischertechik storage base (box 250 x 186



I/O board for micro:bit

micro:bit pins extension board, designed specially to take advantage of  fischertechnik's unique,  flexible red and green round plug cable connections. By design, the I/O board rubber legs slot into the fischertechnik black base-plate grid securely.







The price below is for 1 model out of the 12 models STEM II pack.  If you want to build all 12 models, order the full STEM II pack instead.



  • All model parts can be reused and recycled for other projects and student's creative pieces.    fischertechnik is made in Germany with quality and precision.
  • No soldering.  Ideal for all ages, promote problem solving, changes on the fly as debugging and adjustment can be done instantly.    All works can be done to perfection as even the smallest adjustment can be accommodated, thanks to the complete range of mechanical/structural and electronic blocks offered by fischertechnik.
  • One of the 12 models of STEM 2.   You can now order it on its own for easy whole class lesson, without needing to pick and sort building blocks every time.

Part 1 - micro:bit block commands used in the Merry-Go-Round Model

To achieve fluency and competency in micro:bit coding, you really need to get a thorough understanding of each of the block catagories to be used in the Merry-Go-Round Model (see part 2 below for the full code).    Fortunately, all the reference guides are available on the BBC micro:bit web site for you to get a deeper and more comprehensive understanding and mastery.

Through every fischertechnik STEM II models (12 of them), you can learn, practise, build fluency and confidence in coding.

The Merry-Go-Round Model used the following micro:bit blocks.  You can click to lean more about each of the block catagories.  The links bring you directly to the respective part of the BBC micro:bit reference document site, where live codes are included for you to understand, try, and download:





Part 2   The "live" Merry-Go-Round Code  - Understand, Edit and Download

  The following code has used all the mentioned blocks in Part 1 above.



Comments In English, click the " ? " on block to find out the comment (meaning) of the block code.

  • If you read this page on a computer with wider screen size, you will be able to see the micro:bit simulator that is fully clickable.
  • If you cannot see the code, such as on a mobile phone, please  click this link instead.
  • Click   to open the code on the micro:bit website for further editing and modification.
  • Click   to download this code to your micro:bit for immediate use or to save on your computer.





Connector No. Description
Outputs 8

8 x light/LED

4 x DC motor

- 600mA per output
- 6 - 9 V
    Inputs 6

    5 x analog/ digital

    1 x digital

    - signal up to 5V



    I2C 1 1 x connector (SCL, SDA)
    5V 1

    1 x sensor power supply connection

    (6-9V power supply)

    3.3 V 1 1 x sensor power supply connection
    Battery 1 1 x battery (6 - 9 V) min 4.5 V
    Power Supply 1 1 x universal power adaptor ( 6 - 9 V) min 4.5 v





    Order options
    ADD: 1 unit of I/O board at HK$ 199
    ADD: 1 unit of micro:bit at HK$ 135
    HK$ 456.00

    Model Pack / No I/O board / No micro:bit
